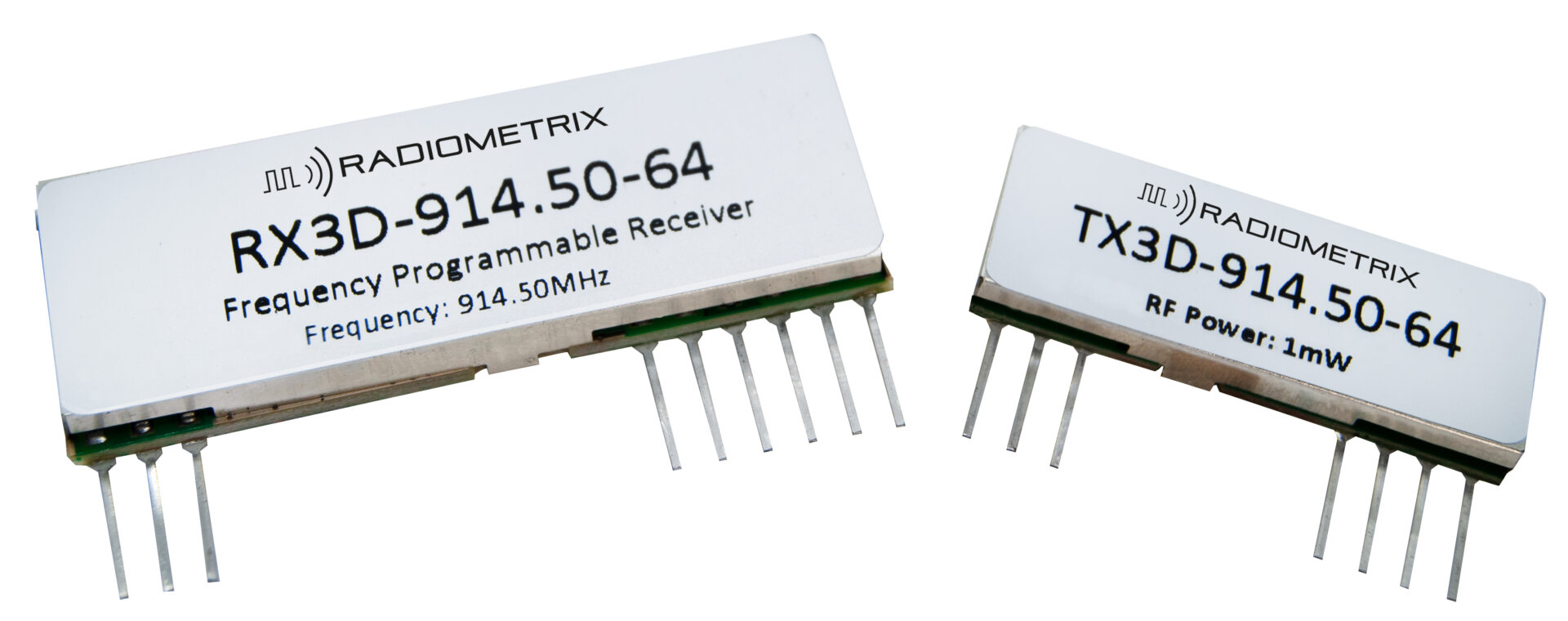

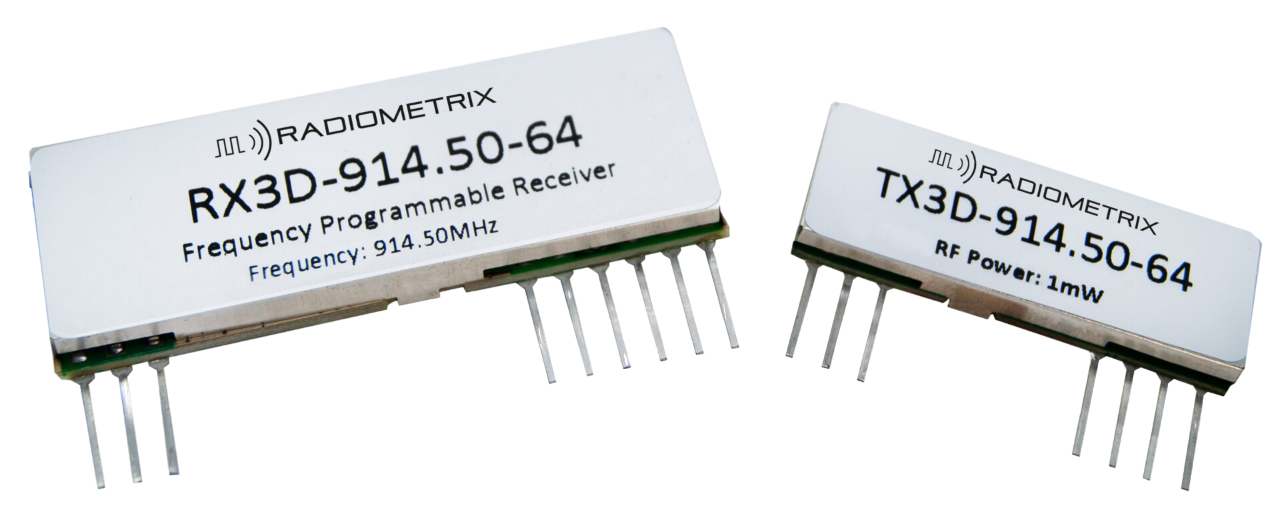

RX3D

Frequency Programmable FM UHF Receiver

The RX3D is a frequency programmable wideband FM receiver module, which is an enhanced replacement for the crystal controlled RX3B series receivers

Key Facts

Functionality

Channel

Band

Operational Range

Data Rate

Data sheet

Features

  • Complies with European harmonised standards EN 300 220 and EN 301 489
  • Data rates: up to 10kbps or 64kbps
  • Crystal controlled PLL Frequency Synthesiser based FM circuitry
  • SAW front end filter and full screening
  • 869.85MHz and 868.30 MHz (EU) or 914.50MHz (North America) as standard
  • Receiver Sensitivity: -111dBm for 12dB SINAD @64kbps, -114dBm for 12dB SINAD @10kbps
  • Supply: 2.9V - 16V @ 18mA Rx
  • Received Signal Strength Indicator (RSSI)
  • Analogue and digital baseband
  • Low profile with small footprint
  • Dimensions: 48 x 17.5 x 4.5mm

Applications

  • Industrial or Commercial Telemetry and Telecommand
  • Wireless Queue Management System
  • Wheel Balancing
  • Sports Scoreboard Display
  • Wireless Battery Monitor
  • Temperature & Pressure Monitoring in Industrial process
