AFS2

500mW RF power amplifier module

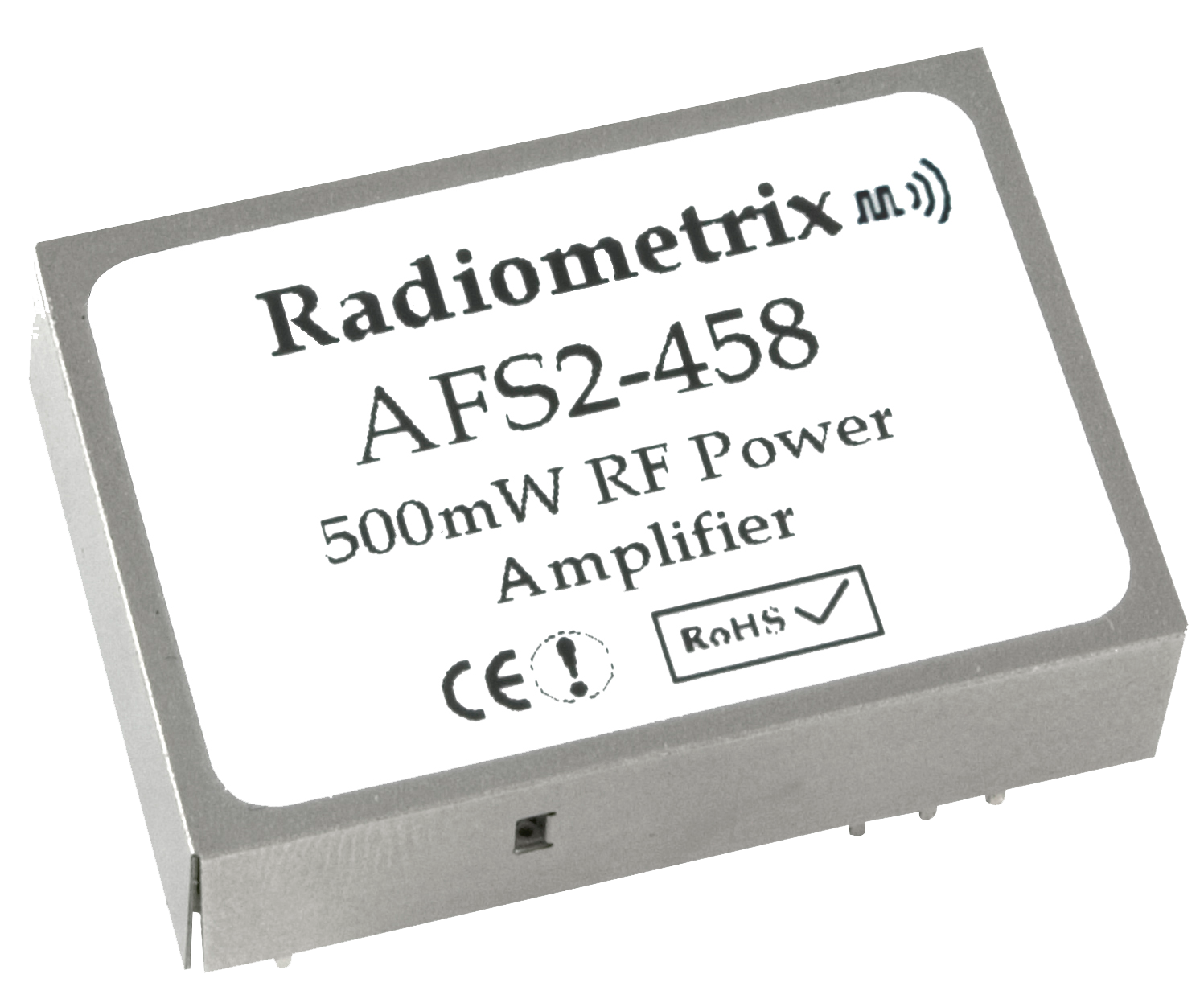

500mW RF power amplifier module AFS2 amplifier module is intended to increase the transmitted power of a TR2M transceiver module. It provides transmit and receive paths, and can be simply 'dropped into' the aerial connection. The AFS2 may be usable with other 100mW output devices, such as LMT2 and TX2M

Key Facts

Functionality

Antennas / Accessories, High Power

Frequency

458MHz (std.) Any 10MHz wide segment in 420 - 470MHz

Frequency

433-434MHz, 458-460MHz

RF Power

500mW

RF Power

>100–≤500mW

Data Rate

≤10kbps

Data Rate

≤10kbps

Operational Range

100-200m, 200-300m, 300-500m, 500-1000m, 1000-1500m, 5000m+

Operational Range

3-5km

Country

Australia, Europe, Far East, North America, United Kingdom

Two way

Yes

Data sheet

Features

  • Conforms to EN 300 220-3 and EN 301 489-3
  • Custom variants from 420MHz to 470MHz on any 5MHz band
  • TX and RX path with <1dB loss
  • 500mW RF power ouput (for 100mW in)
  • Operation at +5V (regulated)
  • Low current consumption: 250mA transmit, <2mA receive
  • Fully screened
  • Small Size: 33 x 23 x 9mm

Applications

  • Handheld terminals
  • Heavy vehicle/machine remote controls
  • EPOS equipment, barcode scanners
  • Data loggers
  • Industrial telemetry and telecommand
  • In-building environmental monitoring and control
  • High-end security and fire alarms
  • Vehicle data up/download
