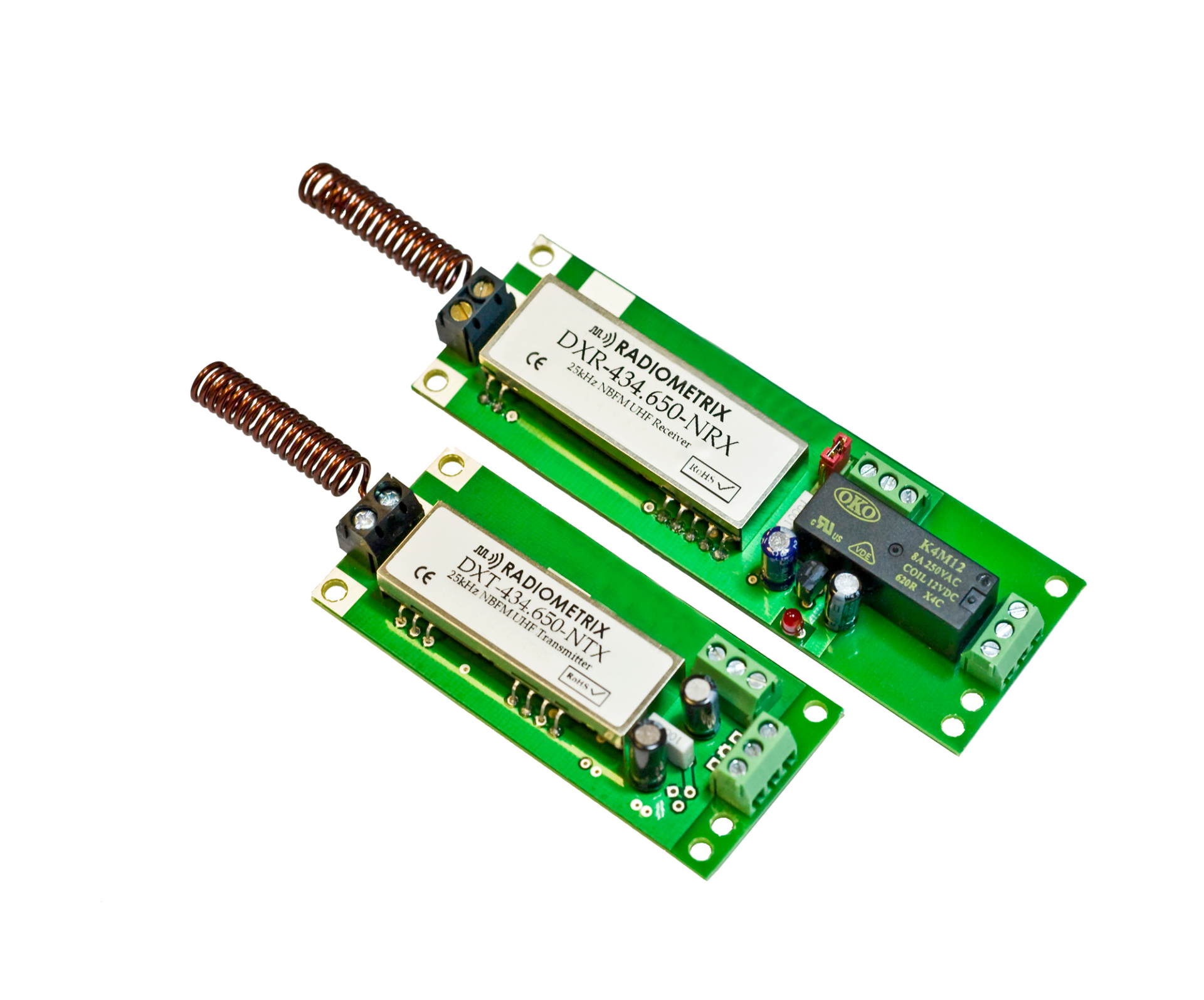

DX series remote control boards

These simple application boards use the firmware and signalling protocols of the existing CXT/CXR module products, interfaced with a choice of SIL package radio modules. A single relay output is provided, controlled by a pair of logic (or switch) inputs on the transmitter. Latched or momentary operation are selectable.

The data format employed has a 16 bit address, which can be user programmed via an RS232 compatible input

Key Facts




Depends on Frequency of Radio Transmitter and Receiver module fitted


, , , , , , , , , ,

RF Power

RF Power

Operational Range

, , , , , , , , , , ,

Operational Range


Australia, Europe, Far East, North America, United Kingdom

Two way


Data sheet


  • Programmable 16 bit address
  • 1 relay to control mains powered devices rated up to 8A, 250VAC/30VDC
  • Visual indication of valid code received and active relays
  • RF module range testing
  • Momentary, Latched outputs
  • Setup is simple as Plug-and-Play
  • RF Remote Control Demonstration
  • Can be used with any Radiometrix SIL pinout transmitters and receivers


  • Security and Alarm systems
  • Emergency assistance call system
  • Status reporting and monitoring systems
  • RF Remote control systems
  • Industrial controls
  • HVAC controls
  • Simple On/Off switching
  • Long range telecontrol with Narrow Band FM radios
