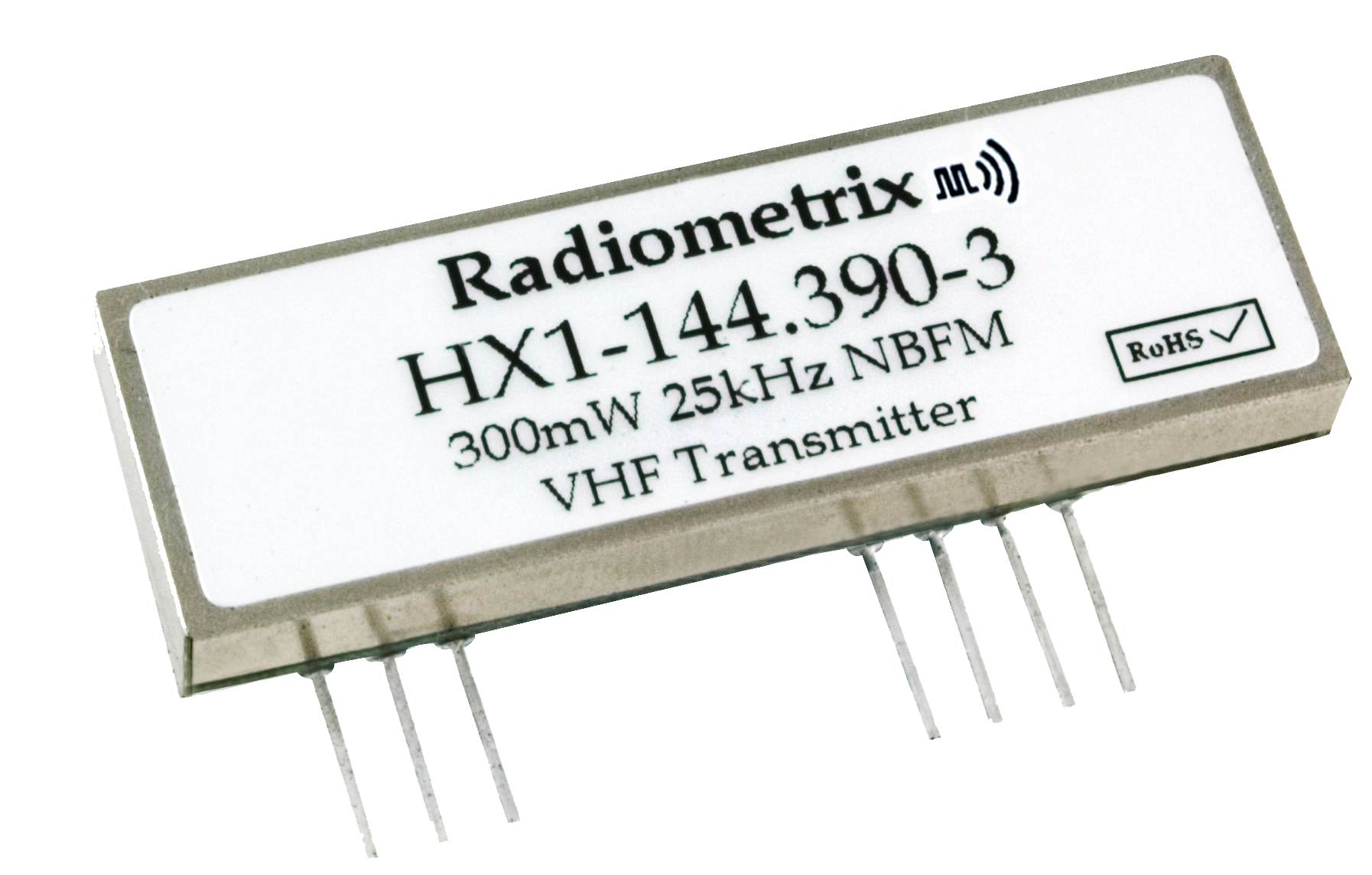

The special HX1 transmitter modules offer a 300mW RF output VHF data link in Radiometrix SIL standard pin-out and footprint. This makes the HX1 ideally suited to those low power applications where existing narrow band and wideband transmitters provide insufficient range. Together with the matching RX1 or BiM1R receiver a one-way radio data link can be achieved over a distance up to 10km+ with suitable choice of data rate and antennas.
144.390MHz, 144.800MHz, 145.175, 169.4125MHz band 120-180MHz Custom Frequency
Australia, Europe, Far East, North America, United Kingdom
The HX1 is a narrow band radio transmitter module for use in long range data transfer applications at ranges up to 10kilometres. HX1 transmitter circuit is the BiM1T transmitter circuit in the TX1 pin-out with slightly enlarged dimension to accommodate extra Power Amplifier circuit to produce 300mW RF output and available for operation on 169MHz European licence exempt frequency band.
