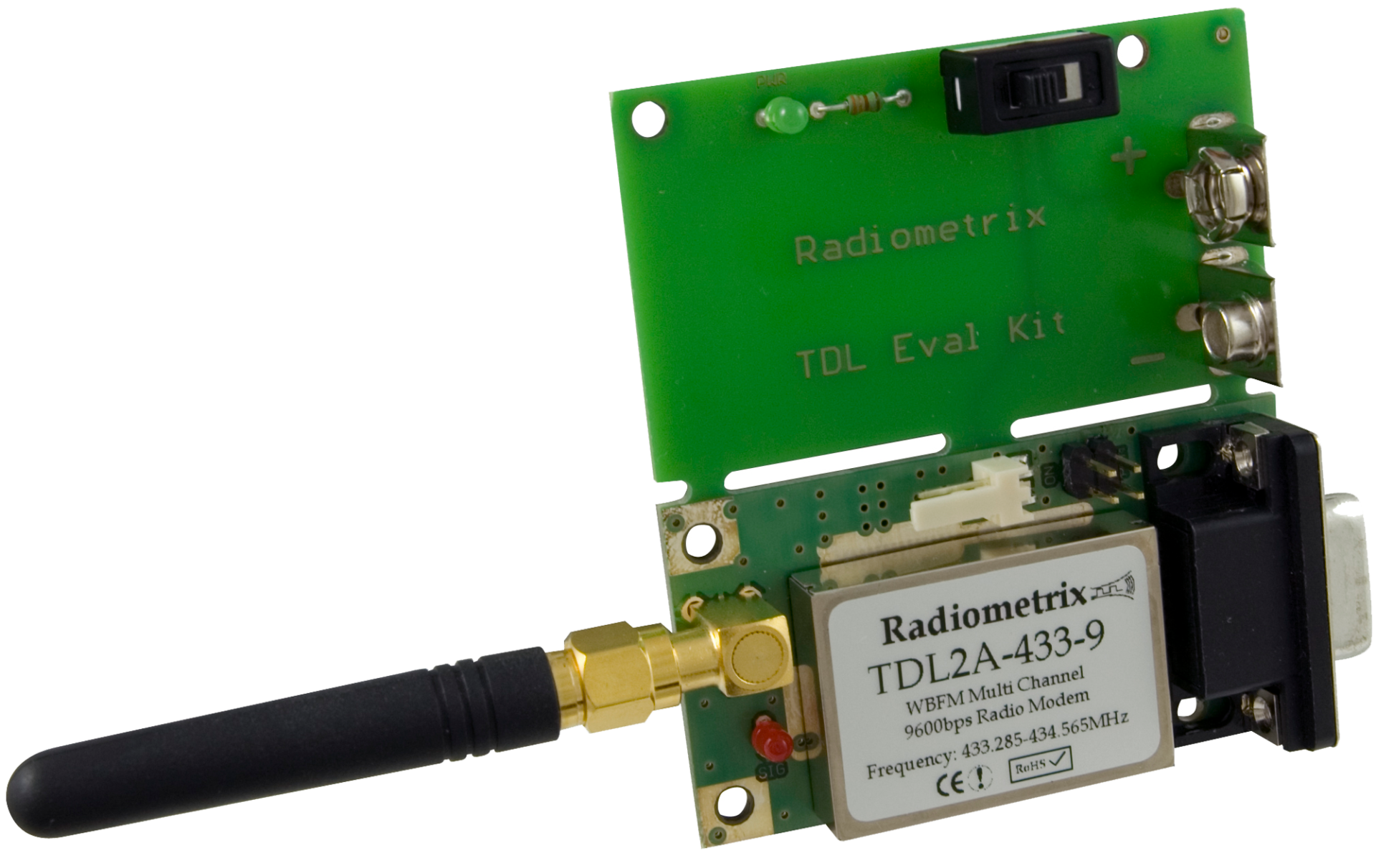

TDL2A Evaluation Kit

TDL2A Evaluation Kit enables user to evaluate transparent data link capability of TDL2A OEM modems. The eval kit is also useful for range testing and it enables evaluation of TDL2A for various antenna types, areas of weak coverage (inc null spots), packet errors etc.

Key Facts

Functionality

Data sheet

Features

  • RS232 driver and DB9F connector for direct interface to PC serial port
  • Setup is simple as Plug-and-Play
  • Set-up and configuration using HyperTerminal
  • Access to internal diagnostic/Test modes using HyperTerminal
  • Carries ASCII and RTU MODBUS messages
  • On board SMA antenna connector
  • Signal LED for visual indication of valid code received
  • RF Remote Control Demonstration
  • PP3 9V battery powered.
  • Size: 73 x 70 x 17mm (excluding helical antenna length of 50mm)
