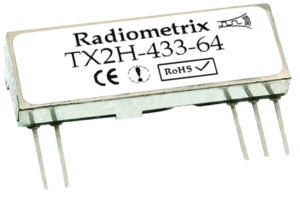

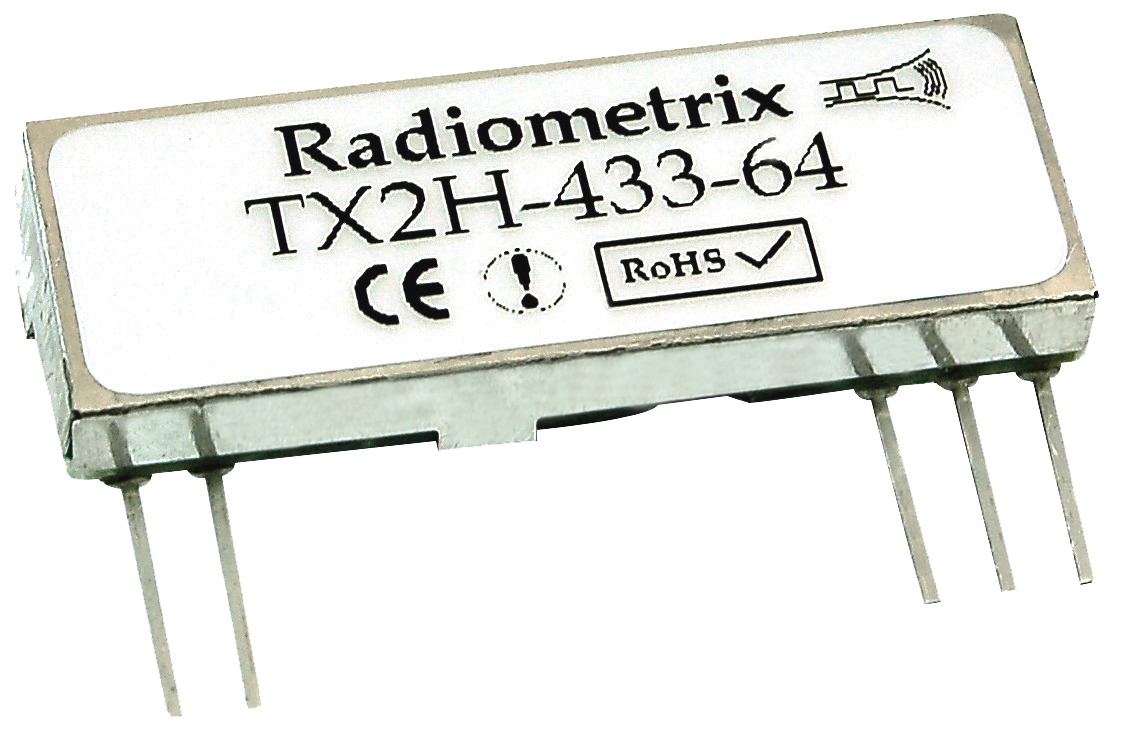

TX2H / TX2EH

433MHz High Power Transmitter

The TX2H is a 433.92MHz FM transmitter module with a power output of 25mW nominal. It is a 100% pin-compatible drop-in replacement for the Radiometrix TX2 and can be used to replace the TX2 in applications where greater radiated power is desired (for example when space limitations dictate the use of small and inefficient antennas, or in countries where the extra power is permitted). The TX2H transmitter can be used with RX2 or RX2A receivers.Instead of the SAW-based technology of the TX2, the TX2H uses a PLL circuit locked to a crystal for better frequency stability over a wider temperature range (-40C to +85C), at the expense of slightly slower power-up.

The module can be made available if required in an extra-high-power version (TX2EH), in the same footprint and pinout but giving 100mW nominal output power at 5V supply with a current consumption of less than 45mA (DC to RF conversion efficiency better than 45%).

Key Facts

Functionality

High Power, Single Channel, Wideband, Transmitter

Band
Frequency

433.92MHz and 434.42MHz

Channel

Single Channel

Frequency

UHF, 433-434MHz

RF Power

25mW /100mW

RF Power

10–≤100mW

Data Rate

>10kbps, ≤10kbps, up to 40kbps, up to 64kbps

Data Rate

>10kbps, ≤10kbps, up to 40kbps, up to 64kbps

Operational Range

In Building, <100m, 100-200m, 200-300m, 300-500m, Line of sight

Operational Range

300-500m

Country

Australia

Two way

No

Data sheet

Features

  • High power drop in replacement for TX2
  • Data rates up to 64kbps
  • Usable range over 500m
  • Fully screened
  • Low power requirements
  • Conforms to European EN 301 489-3 and ETSI EN 300 220-3 (for ERP @ 10mW)
  • Conforms to Australian/New Zealand AS/NZS 4268:2003

Applications

  • Handheld terminals
  • Data loggers
  • Industrial telemetry and telecommand
  • In-building environmental monitoring and control
  • High-end security and fire alarms
  • Vehicle data up/download
