Universal Evaluation Kit

UNIEK - Wide band modules eveluation platform

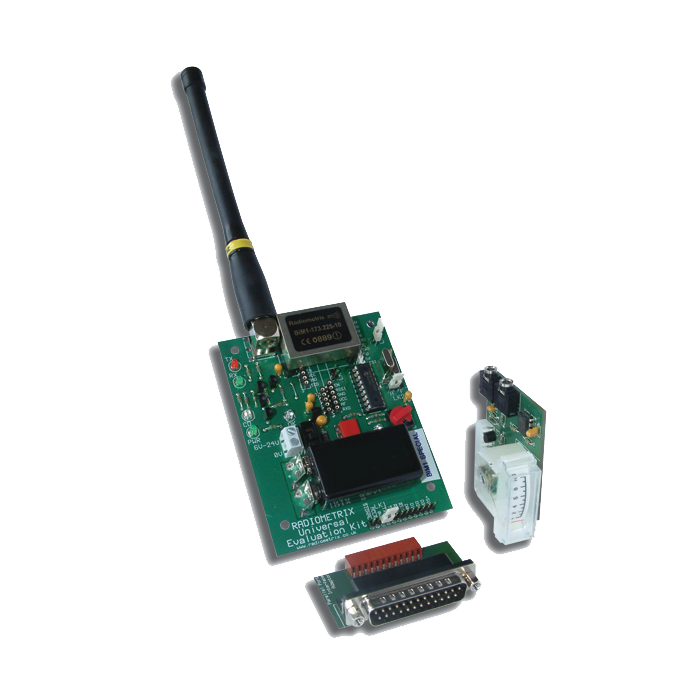

This Evaluation Kit can be used to evaluate single frequency Radiometrix VHF/UHF transmitter, receiver and transceiver modules. LED indicators are provided to show system status and to facilitate range testing and site surveys. The board is controlled by the Eval-RPC chip and incorporates several useful diagnostics & debug modes. Link-selectable 9.6kbps or 64kbps data rate.

Key Facts

Functionality

Data sheet

Features

  • Range Testing
  • Target Environment Testing
  • Noise and Interference Identification
  • Antenna Evaluation
  • TX1(H)/HX1/RX1, NTX2/NRX2, TX2(A)/TX2H/RX2(A), TX3A/RX3A, BiM1T/ BiM1R, CVR1, BiM/1/2/3A and NiM2 hardware test
  • Transient Analysis
  • Communication Eye Diagrm
  • Analogue and digital data transmission
  • Received Signal Strength Indicator (RSSI) meter
  • Linking external hardware directly or via on board Eval RPC
  • Responses up to 9.6kbps (A) or 64kbps (F)

Applications

  • Handheld terminals
  • Heavy vehicle/machine remote controls
  • EPOS equipment, barcode scanners
  • Data loggers
  • Industrial telemetry and telecommand
  • In-building environmental monitoring and control
  • High-end security and fire alarms
  • Vehicle data up/download
