Bi-directional low power RF Remote Control application boards

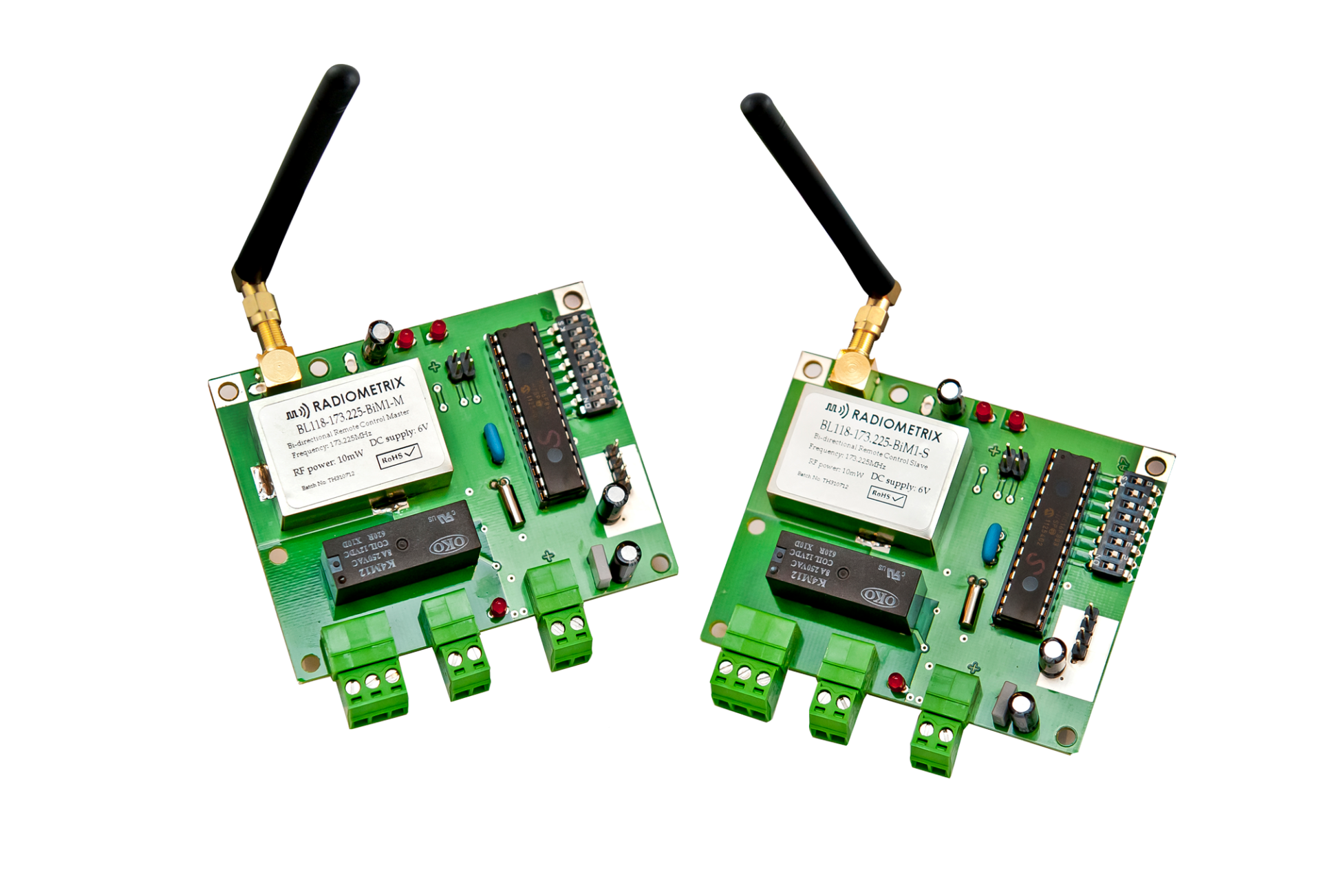

These simple application boards use firmware based on the BD118 remote control systems to implement a bi-directional control link. A system consists of a master board (which initiates communication burst cycles) and a slave (which responds to them). In hardware terms these boards are the same, but have different firmware loaded.


  • 8 bit address select switch
  • A relay to control mains powered devices rated up to 8A, 240VAC
  • Visual LED indication of communication status and relay state
  • Useful for RF module range testing
  • Logic or Switch input for momentary control of relay
  • Very low (1mA) average current. 2 years operating life from D cells
  • Simple “plug-and-play” setup. No complex programming needed


  • Security and Alarm systems
  • Emergency assistance call system
  • Status reporting and monitoring systems
  • RF Remote control systems
  • Industrial controls
  • HVAC controls
  • Simple On/Off switching
  • Long range telecontrol with Narrow Band FM radios
