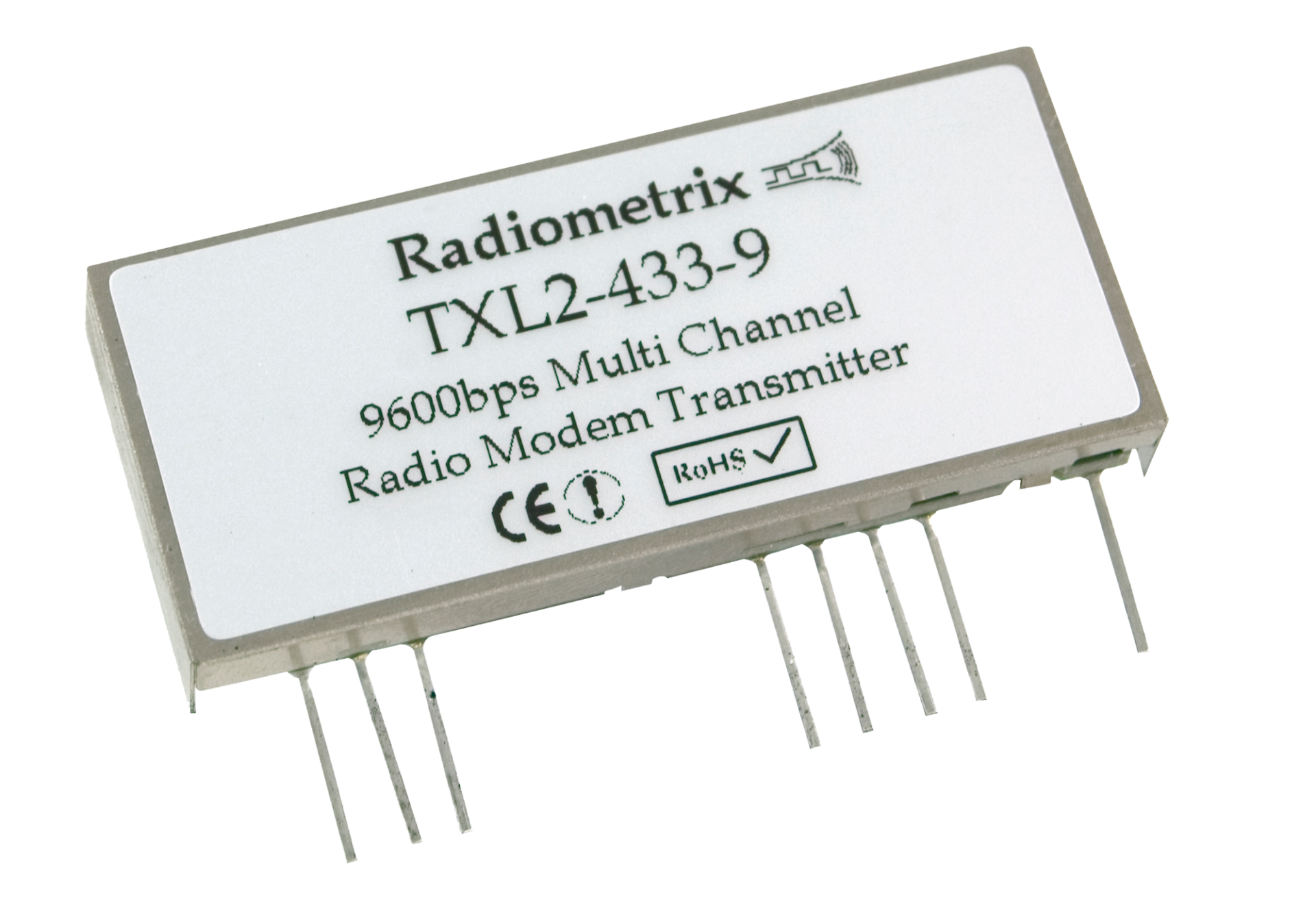

UHF Multi Channel Transparent Data Link TX/RX

The TXL2/ RXL2 pair provides a one-way radio link. Provided no two devices attempt to transmit simultaneously no further restrictions on data transmission need be made, as all transmit timing, valid data identification and datastream buffering is conducted by the units. Synchronisation and framing words in the packet prevent the receiver outputting garbage in the absence of wanted RF signal or presence of interference.For multiple radio systems a TXL2/RXL2 can be set to 1 of 8 unique addresses. As well as having unique addresses, the TXL2/RXL2 allow operation on one of 5 pre-set frequencies in the 433MHz band. These frequencies are non-overlapping and simultaneous operation of TXL2/RXL2 pairs in the same area on different channels will be possible. Units are supplied on 433.925MHz (Ch0) as default.

Key Facts


, , ,






RF Power

RF Power

Data Rate

Data Rate

Operational Range

, ,

Operational Range


, , , ,

Two way

Data sheet


  • Conforms to EN 300 220-3 and EN 301 489-3
  • High quality, stable crystal reference
  • Low noise synthesiser / VCO
  • SAW front-end filter
  • Multi-stage ceramic IF filtering
  • Single conversion superhet
  • Serial modem baud rate at 9600bps (simplex)
  • Addressable point-to-point
  • 5 serial select wideband channels


  • Handheld / portable terminals
  • PDAs, organisers & laptops
  • Industrial telemetry and telecommand
  • In-building environmental monitoring and control
  • Remote data acquisition system, data logging
  • Fleet management, vehicle data acquisition
